Product name: Shipyard Transporter
The number of browsing: 0

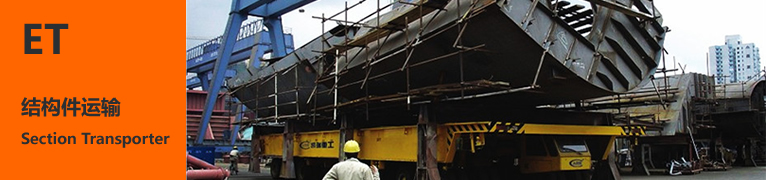

Combination with universities, CARRIE has developed the heavy-duty flat transporter, which incorporated mechanism, electronic and hydraulic technology.
The vehicle adopts several technologies such as hydraulic driving, hydraulic suspension, hydraulic independent turning and hydraulic leveing etc. Driving,
steering and leveling are all achieved by microcircuit control. It has been widely used to transport sectional hull structure in shipbuilding enterprises and extra
large-size prefabricated concrete in large-scale steel plant and highway and railway because of its advantages of strong load capability, unique steering
features, agilely driving capacity and automatical lifting etc.
The vehicle adopts several technologies such as hydraulic driving, hydraulic suspension, hydraulic independent turning and hydraulic leveing etc. Driving,
steering and leveling are all achieved by microcircuit control. It has been widely used to transport sectional hull structure in shipbuilding enterprises and extra
large-size prefabricated concrete in large-scale steel plant and highway and railway because of its advantages of strong load capability, unique steering
features, agilely driving capacity and automatical lifting etc.

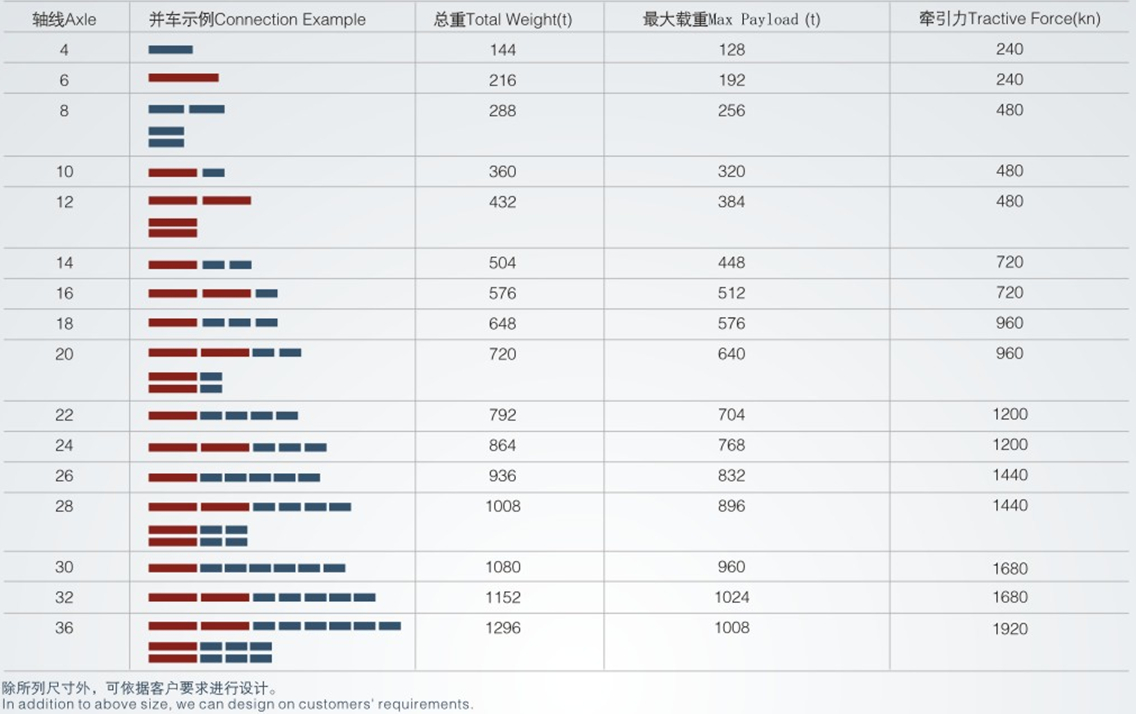

According to size and weight of the load, modular transporters can connect in longitudinal and transverse direction. Different axle lines can perform
different loading tonnage,and the max compound weight can get to 10000ton. The connection mode of 6axles and 4 axles below 1300t is as follows.
different loading tonnage,and the max compound weight can get to 10000ton. The connection mode of 6axles and 4 axles below 1300t is as follows.
